Demystifying Your Furnace Sequence of Operations: What Happens When You Turn Up the Heat

Hearing the Click: Decoding Your Furnace's Startup Sounds

You walk past the hallway thermostat, bump the temperature up a few degrees, and hear that familiar click. But instead of the comforting rush of warm air, the house stays quiet—or worse, makes strange humming noises before shutting down entirely. Demystifying your furnace sequence of operations: what happens when you turn up the heat is the key to understanding whether your system is functioning normally or failing mid-cycle. That strange noise from your furnace isn't going away on its own, and knowing what those sounds mean puts you in control.

At Rep-Air Heating and Cooling, we frequently hear from homeowners who are tired of guessing what their HVAC system is doing. Navigating the stages of a heating cycle is the first step toward better home care, and understanding these mechanical steps removes the mystery from your utility closet. For comprehensive support, connecting with our reliable home heating and cooling services ensures your equipment runs safely through the winter heating season in Mission BC.

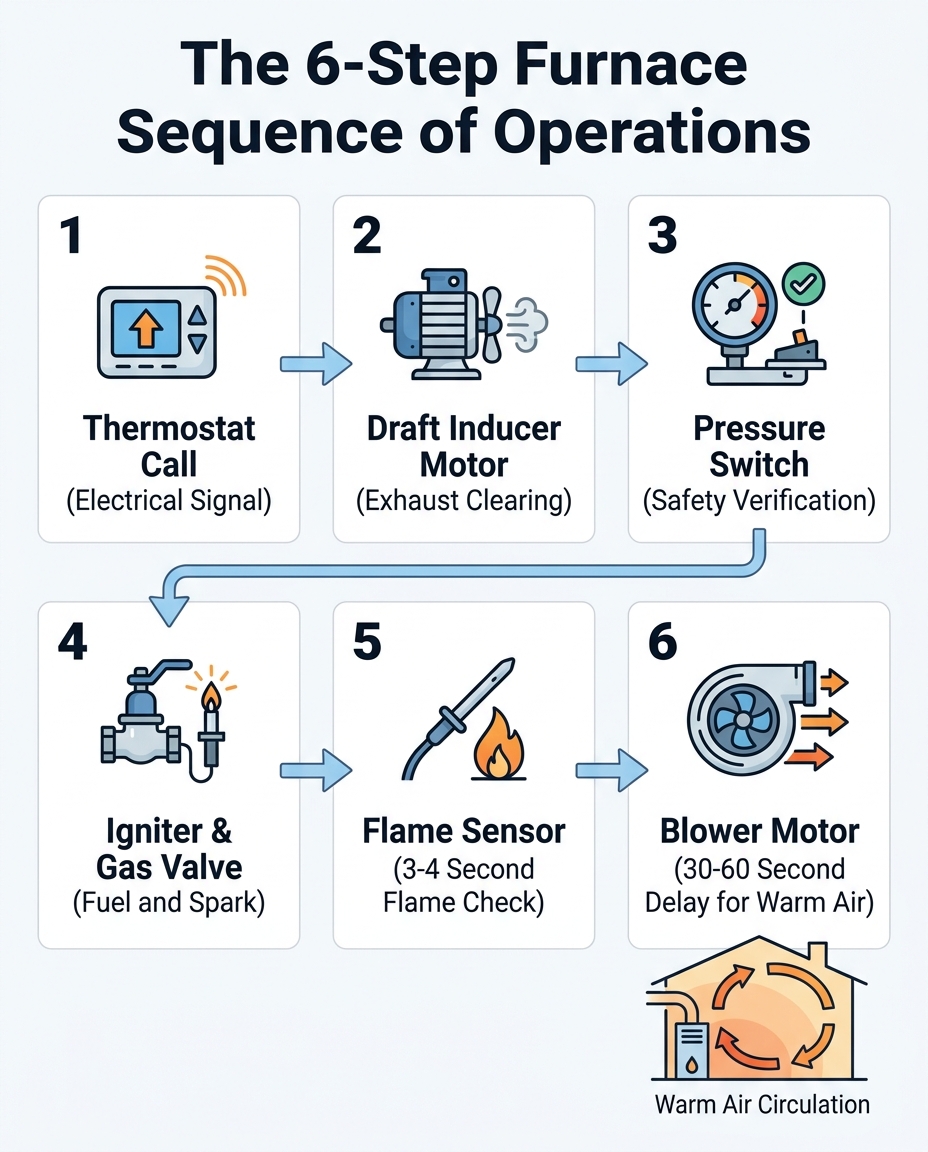

Step 1: The Initial Signal and the Thermostat's Role

The entire heating process begins long before any gas is burned or any air is moved. It starts with a simple, silent conversation between your hallway thermostat and the furnace control board located inside the utility cabinet.

The Low-Voltage Trigger

When the indoor temperature drops below your set preference, the thermostat initiates a thermostat call for heat. This is a purely electrical, instantaneous step. Here is exactly what happens during this initial phase:

1. The Temperature Drop: The internal sensor detects the room is colder than the setpoint.

2. The Switch Closes: A relay inside the thermostat closes, creating that audible "click" you hear from the wall unit.

3. The Signal is Sent: A 24-volt electrical current travels down the hidden wall wires directly to the furnace's main control board.

4. The Board Awakens: The control board receives the signal and prepares to start the mechanical sequence.

If your heating sequence fails at this very first stage, your furnace will remain completely silent. A blank thermostat screen, dead batteries, or a tripped circuit breaker can prevent the signal from ever leaving the wall. If the control board never receives the message, the furnace simply does not know it is supposed to turn on. Upgrading your controls or seeking professional heating solutions can resolve communication failures between the wall unit and the main cabinet.

Step 2: Clearing the Way with the Draft Inducer Motor

Once the control board receives the thermostat call for heat, it immediately activates the very first mechanical component: the draft inducer motor. This is the first sound you will hear coming from the actual furnace cabinet.

Listening for the Low Hum

The quick fix: If you hear the thermostat click but the furnace remains dead silent, our technicians often find that the sequence has stalled before or right at the inducer motor phase.

The draft inducer is a small blower motor designed to clear residual, potentially toxic combustion gases out of the heat exchanger before any fresh gas is released. It creates a negative pressure—a draft—that pushes leftover gases up and out through the exhaust flue. This is a critical safety mechanism designed to prevent carbon monoxide from accumulating inside your home during the winter heating season in Mission BC.

In our years of serving the local area, our team has seen firsthand how the damp Fraser Valley climate creates unique environmental challenges for heating systems. High-efficiency furnace exhaust pipes routed outside are particularly susceptible to moisture buildup. When temperatures drop, that condensation can freeze into frost, partially or fully blocking the flue pipe. If the exhaust pipe is blocked by ice or debris, the draft inducer motor cannot create the necessary vacuum to clear the heat exchanger safely.

• Smooth, steady low hum — What It Means: Inducer motor is successfully clearing exhaust gases. — System Status: Normal Operation

• Loud rattling or heavy vibrating — What It Means: Debris in the flue pipe or a failing motor bearing. — System Status: Needs Attention

• Total silence after the wall click — What It Means: Control board failed to send power to the inducer. — System Status: Stalled Sequence

Step 3: The Silent Checkpoint of the Pressure Switch

The furnace control board is smart, but it is also blind. It knows it sent electricity to turn on the draft inducer motor, but it needs physical proof that the motor is actually moving air. That is where the pressure switch comes in.

Why Safeties Matter

The pressure switch is a "silent" checkpoint. You will not hear it operate, but the control board is waiting for its confirmation. Inside the switch is a small rubber diaphragm. When the inducer motor creates enough negative pressure (suction), it physically pulls that diaphragm closed, completing an electrical circuit. This tells the control board, "The exhaust flue is clear, and it is safe to proceed."

• The Problem: The inducer motor runs continuously, but the furnace never ignites.

• The Cause: The pressure switch fails to close. This happens if the flue is blocked by a bird's nest, heavy frost, or if the inducer motor is failing to pull enough draft.

• The Solution: The system halts the sequence immediately to prevent carbon monoxide buildup. A technician must inspect the venting and test the switch.

During a recent winter service call, one of our Rep-Air technicians visited a local homeowner whose furnace required repair because it was stalling silently after the inducer motor started. Our team explained the repair process and exactly how the furnace operates, specifically highlighting the pressure switch's role. Once the customer understood the repair and the furnace function, the anxiety of a broken system was replaced with confidence in their equipment's safety features.

At Rep-Air Heating and Cooling, we believe in transparent, educational customer service. Helping you understand how these safeties protect your household is just as vital as fixing them when they break. Understanding these silent checkpoints is a core part of our furnace diagnosis process, ensuring that every subsequent step relies on a verified, safe foundation after the initial thermostat call for heat.

Step 4: The Glow and Click of the Igniter and Gas Valve

With the exhaust flue cleared and the pressure switch closed, the furnace is finally ready to introduce fuel and fire. This is the most visually and auditorily distinct phase of the heating cycle.

The Hot Surface Igniter

Modern furnaces no longer use standing pilot lights that burn continuously all winter. Instead, they use electronic ignition systems. Here is the step-by-step breakdown of how your furnace safely lights the burners following a thermostat call for heat:

1. The Igniter Warms Up: The control board sends 120 volts of electricity to the hot surface igniter. This component is made of silicon carbide and acts much like a filament in a toaster.

2. The Visual Cue: If you look through the small sight glass on your furnace cabinet, you will see a bright, glowing orange light as the igniter reaches temperatures exceeding 2,000 degrees Fahrenheit. This usually takes about 10 to 15 seconds.

3. The Gas Valve Opens: Once the igniter is sufficiently hot, the control board sends a low-voltage signal to the gas valve. You will hear a sharp, distinct "click" as the valve snaps open.

4. The Ignition: Gas flows across the glowing igniter, resulting in an immediate, soft "whoosh" sound as the fuel ignites across the entire burner assembly.

The timing of this step is highly precise. If the gas valve opens but the igniter is cracked or failing to reach the proper temperature, raw gas could pool inside the cabinet. The system's programming ensures that fuel is only released exactly when the ignition source is ready.

Step 5: Sustaining the Fire via Flame Sensor Verification

Lighting the burners is only half the battle. The furnace must immediately prove that the fire is burning steadily and safely. The flame sensor acts as the final safety checkpoint before the system commits to sustained heating.

The 4-Second Rule

The flame sensor is a thin metal rod positioned directly in the path of the newly lit flames. It relies on a principle called flame rectification. Because fire conducts a tiny amount of electricity, the control board sends a microamp current through the sensor. If the flame is present, the current travels through the fire and grounds out on the burner assembly. If the flame is missing, the circuit breaks.

The control board gives the flame sensor a strict 3-to-4-second window to verify the fire. If the sensor does not detect a steady flame within that brief timeframe, it shuts the gas valve immediately.

In another recent service call during the winter heating season in Mission BC, a customer reached out to our team because their furnace was not working correctly—it would ignite, but the flames would die almost immediately. Our responding technician clearly explained the issue, detailing how a soot-covered flame sensor was failing to read the microamp signal. After we fixed it and provided maintenance tips, the customer's furnace was back up and running, and they received valuable advice to prevent future cold nights.

A dirty flame sensor is one of the most common reasons we see a furnace start and then abruptly stop. Routine preventative care keeps this component clean and functional. Enrolling in a preventative maintenance plan ensures that sensitive parts like the flame sensor are polished and tested long before the deep freeze arrives.

Step 6: Delivering Warmth with Blower Motor Engagement

At this point, the burners are roaring, and the flame sensor has confirmed a stable fire. However, you still will not feel any warm air coming out of your vents. This intentional delay often causes homeowners to worry that the system is broken.

The Heat Exchanger Delay

There is a standard 30 to 60-second delay between the burners igniting and the main blower motor turning on. This delay serves a very specific purpose related to your comfort.

• The Problem: If the blower fan started at the exact same moment as the burners, it would push the cold, stagnant air sitting inside your ductwork directly into your living spaces.

• The Cause: The heat exchanger (the metal chamber that absorbs heat from the burners) needs time to warm up.

• The Solution: The control board waits for the internal temperatures to rise. Once the heat exchanger is sufficiently hot, the system engages the main blower motor.

You will hear a large, powerful "whoosh" as the blower engages, pulling cold air from your return vents, passing it over the hot heat exchanger, and pushing the newly warmed air through your supply registers.

During this phase, a component called the limit switch monitors the internal cabinet temperature. If the blower motor fails to start, the heat exchanger will rapidly overheat. The limit switch will detect this dangerous temperature spike and immediately shut down the burners to prevent the metal from cracking. When the blower finally engages and warm air flows steadily, the sequence of operations initiated by the thermostat call for heat is officially successful.

When the Sequence Stalls: Understanding Hard Lockouts

Furnaces are designed to be overly cautious. If any of the safety checkpoints—the pressure switch, the igniter, or the flame sensor—fail repeatedly, the control board will step in to protect the home.

Decoding the Stalled Cycle

If a furnace fails to ignite or sustain a flame after 3 to 4 consecutive attempts, the control board enters a "hard lockout" mode. This is a deliberate safety shutdown. The system will stop trying to start entirely, and the blower fan may run continuously to clear out any residual heat or unburned gas.

A hard lockout requires a manual reset (usually by cycling the power switch off and back on) or professional intervention. Tracking the specific sounds before the lockout helps our technicians diagnose the issue faster during the winter heating season in Mission BC.

• System clicks, but no motor sounds occur — Likely Sequence Failure: Thermostat signal or control board issue — Next Step for Homeowners: Check thermostat batteries and circuit breaker

• Inducer hums, but no orange glow appears — Likely Sequence Failure: Pressure switch or igniter failure — Next Step for Homeowners: Inspect exterior exhaust pipes for blockage

• Flames ignite, but shut off in 4 seconds — Likely Sequence Failure: Flame sensor failing to read microamps — Next Step for Homeowners: Schedule professional maintenance

If your system is constantly entering lockout mode, simply resetting the breaker over and over is not a long-term strategy. Repeated lockouts indicate a fundamental mechanical failure. When components degrade beyond simple repairs, our team recommends seeking expert HVAC installation to ensure you are not pouring money into a continuously failing sequence.

Empowering Your Home Heating Decisions

Demystifying the mechanical steps from the initial thermostat call for heat to the final blower engagement removes the anxiety of unknown furnace noises. You do not need to be a licensed technician to understand the difference between a healthy draft inducer hum and a stalled ignition cycle.

Knowing where the sequence stalls makes for significantly better communication with our local experts at Rep-Air Heating and Cooling. When you can tell a technician exactly which sound failed to happen, you save time and get your home back to a comfortable temperature faster. Pay attention to the clicks, hums, and whooshes your system makes. If your heating cycle is consistently interrupting, stalling, or failing to deliver warmth, trust your ears and reach out to our team for professional guidance to restore your peace of mind.

Frequently Asked Questions

What is the sequence of operation for a gas furnace?
The sequence of operation is the specific, step-by-step mechanical process a furnace follows to safely generate heat. It begins with a thermostat signal, moves to the draft inducer motor clearing exhaust, verifies safety with a pressure switch, ignites the gas, confirms the flame via a sensor, and finally engages the blower motor to distribute warm air.

Why does my furnace click but not turn on?
A click with no subsequent sounds usually means the sequence has stalled at the very beginning of the cycle. The thermostat is successfully sending a signal, but the furnace control board is either not receiving it, or it is failing to send power to the draft inducer motor. This often points to a blown fuse on the control board or a tripped breaker.

How long does a furnace take to kick on after adjusting the thermostat?
You should hear the draft inducer motor start almost immediately after the thermostat clicks. However, it takes roughly 60 to 90 seconds for the entire sequence to complete and for the main blower motor to start pushing warm air through your vents, allowing the heat exchanger time to warm up.

What happens when a furnace locks out?
When a furnace locks out, the control board deliberately shuts down the heating cycle after 3 to 4 failed ignition attempts. This is a built-in safety feature designed to prevent raw gas accumulation or overheating. The system will usually require a manual reset or a professional diagnostic to clear the error code.

Can damp weather or heavy frost affect my furnace's startup sequence?
Yes, environmental factors heavily influence high-efficiency furnaces. Damp weather and freezing temperatures can cause condensation to turn into frost inside the exterior exhaust pipes. If the exhaust flue becomes blocked by ice, the pressure switch will not close, and the furnace will halt the sequence to prevent carbon monoxide issues.
