The Ins and Outs of Tankless Circulator Pumps

What Is a Tankless Circulator Pump and Why Does It Matter?

A tankless circulator pump is a small but powerful device that keeps hot water moving through your home's pipes — so it's ready the moment you turn on a tap. No more running the faucet for two minutes waiting for warm water to arrive.

Here's a quick overview of what you need to know:

• What it does: Continuously or periodically circulates hot water through your plumbing loop, keeping water near your fixtures warm
• Why it matters: Without one, cold water sitting in your pipes gets wasted every time you wait for hot water to arrive
• Who needs it most: Homes with long pipe runs, multiple stories, or multiple bathrooms
• Water savings: Up to 12,000–15,000 gallons saved per year
• Types available: Timer-based, on-demand, and smart/Wi-Fi controlled systems
• Works with: Most tankless water heaters, either through built-in integration or retrofit kits

If you've ever watched the clock while waiting for your shower to warm up, you already understand the problem. The average home wastes roughly 26 hours per year just waiting for hot water — and every drop that goes down the drain while you wait is water (and money) lost. For homeowners in Mission, BC and across the Lower Mainland, where multi-level homes and longer pipe runs are common, this frustration is especially familiar.

Tankless water heaters are already a smart choice for energy efficiency and endless hot water. But without a recirculation pump, that "instant hot water" promise can fall a little flat. That's where a tankless circulator pump steps in — bridging the gap between your heater and your fixtures, so hot water is there when you need it.

In this guide, we'll walk through exactly how these systems work, what to look for when choosing one, and how to keep yours running smoothly.

Understanding the Role of a Tankless Circulator Pump

To truly appreciate the tankless circulator pump, we first have to look at the "cold water sandwich." This is the industry term for that annoying burst of cold water you get when you turn the shower back on after a brief pause. Because a tankless unit only heats water as it flows, any water left in the pipes between the heater and the shower cools down.

A circulator pump solves this by using flow sensors and a high-efficiency motor to move that cooled water back to the heater. Modern units, like the ones we see in Tankless Water Heater Yennadon, BC, often feature stainless steel construction to resist corrosion and ensure a long lifespan. By keeping a continuous or scheduled flow of warmed water in the lines, the heat exchanger inside your tankless unit doesn't have to start from zero every time you wash your hands.

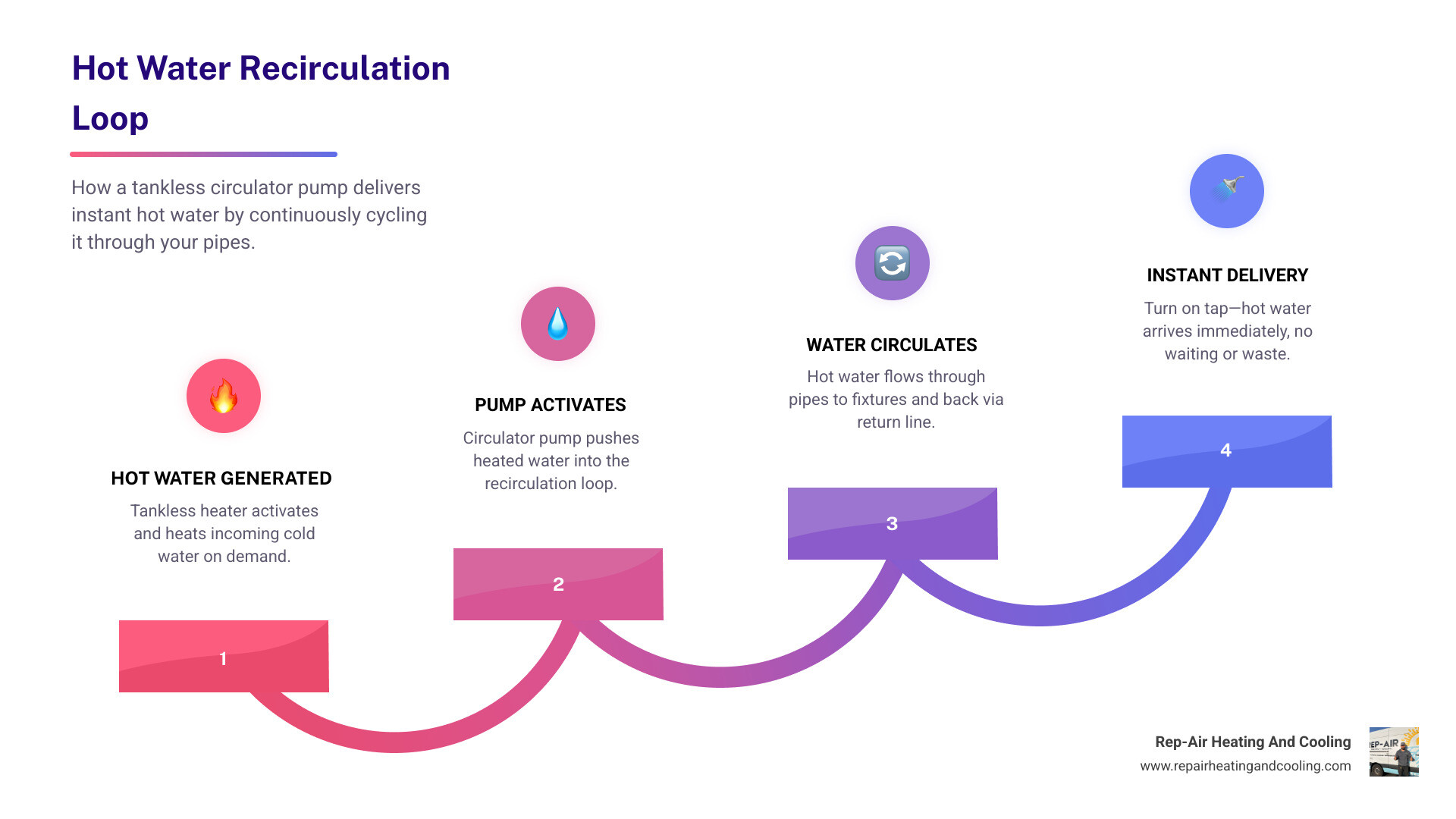

How the Recirculation Process Works

The magic happens through a loop system. There are two primary ways to set this up:

1. Dedicated Return Lines: In new construction, a separate pipe is installed that runs from the furthest fixture back to the water heater. The pump sits on this line and pulls hot water through the entire house, returning the cooled water to the heater to be "topped off."
2. Bypass Valves (Crossover Valves): For older homes, like those in Tankless Water Heater Haney, BC, we use the existing cold water line as the return path. A specialized valve is installed under the sink furthest from the heater. When the water in the hot line cools down, the valve opens, and the pump pushes that lukewarm water into the cold line to head back to the heater.

Why Homeowners in Mission, BC Benefit from Recirculation

In the Lower Mainland, we love our spacious homes, but those square feet come with a lot of plumbing. If your kitchen is at one end of the house and your tankless heater is in the garage at the other, you could be waiting several minutes for hot water. This isn't just a convenience issue; it’s an environmental one.

Statistics show that a household with five taps can waste up to 15,000 gallons of water annually just waiting for the temperature to rise. That is equivalent to roughly 3,000 loads of dishes! By installing a tankless circulator pump, you significantly reduce this waste. For those considering a Tankless Water Heater Installation Brookswood, BC, adding a recirculation kit at the time of install is one of the best ways to maximize utility efficiency and reduce your home's environmental footprint. It’s better for the planet and much better for your morning routine.

Comparing the Main Types of Recirculation Systems

Choosing the right system depends on your home’s layout and your budget. Here is a breakdown of how the different technologies stack up:

Many modern systems now include smart cycling and Wi-Fi integration. This allows you to control the pump from your phone, which is a popular feature for homeowners looking into Tankless Water Heater Milner, BC. You can tell the pump to run only when you're actually home, saving energy during the workday.

Benefits of Demand-Controlled Activation

While some pumps run on a simple timer, "demand-controlled" systems are the gold standard for energy savings. These systems use motion sensors in the bathroom or push buttons in the kitchen to activate the pump only when someone is actually in the room. This "energy saver mode" ensures the pump isn't cycling water at 3:00 AM when everyone is asleep. We often recommend these setups for Tankless Water Heater Silver Valley, BC residents who want the ultimate balance between luxury and conservation.

Selecting the Best Tankless Circulator Pump for Your Home

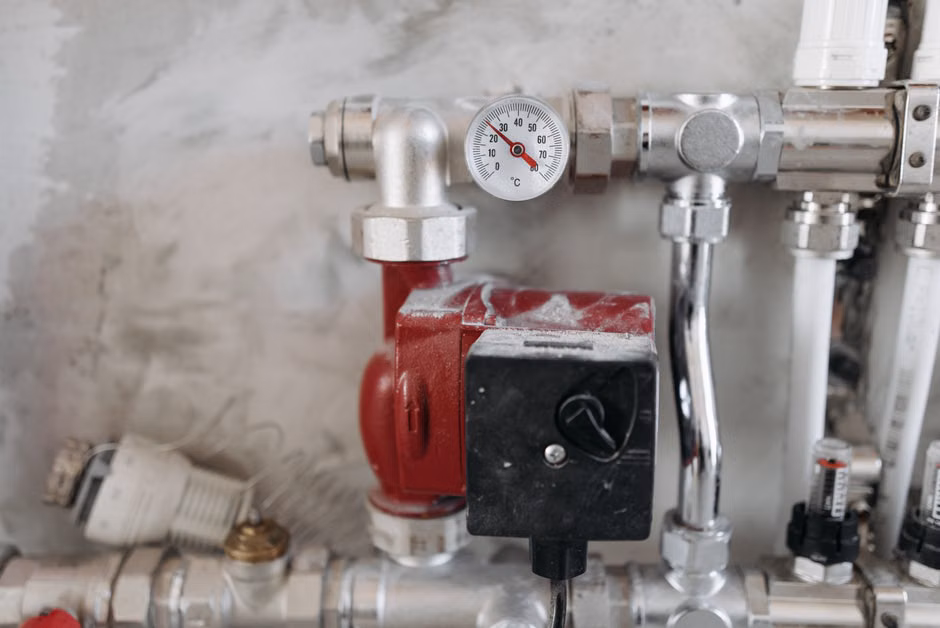

When you're shopping for a tankless circulator pump, you'll notice a few different materials. We always suggest looking for stainless steel housing or lead-free brass. These materials are essential for drinking water safety and durability. If you're in Tankless Water Heater West Central, BC, you should also pay attention to "head pressure" and pipe length limits. A pump designed for a small condo won't have the "oomph" to push water through a 4,000-square-foot home with 200 feet of piping.

Essential Features of a Tankless Circulator Pump

To get the most out of your investment, look for these key features:

• Internal Check Valve: This prevents water from flowing backward through the pump, which can mess up your water pressure and heater performance.
• Molex Connectors: Many brand-specific pumps (like Rheem) use these "plug-and-play" connectors to talk directly to the water heater's computer.
• Built-in Timers: These allow you to set "Performance" modes for morning showers and "Eco" modes for the rest of the day.
• Aqua Stats: These are temperature sensors that tell the pump to shut off once the water in the loop reaches a certain temperature (usually around 95°F to 105°F). This is a standard feature we look for when servicing Tankless Water Heater Kanaka Creek, BC.

Top-Rated Tankless Circulator Pump Kits for 2026

As of April 2026, several models have risen to the top based on reliability and ease of use:

1. Rheem AP17920: This is a favorite for its direct integration with Rheem heaters. It includes a Taco 0015 pump and stainless steel flanges.
2. APCOM TV1: A rugged "Instant Hot Water" pump specifically engineered for tankless retrofits.
3. Grundfos UP10-16: Known for its "AutoAdapt" technology, which learns your hot water usage patterns over two weeks and then automatically creates a schedule for you.
4. Taco 0015-Based Kits: These are the workhorses of the industry, often found in Tankless Water Heater Simonds, BC due to their long-term reliability.

Installation and Maintenance for Peak Performance

While some kits are marketed as DIY-friendly, we always recommend professional calibration. A pump that is installed incorrectly can cause "pinhole leaks" in your copper pipes over time due to high-velocity erosion. During a Tankless Water Heater Installation McMillan, BC, our technicians ensure the pump speed is perfectly matched to your home’s pipe diameter.

Maintenance is also crucial. Because a tankless circulator pump moves a lot of water, it can become a magnet for mineral build-up (scale). We recommend:

• Annual Flushing: Descaling your heater and pump at the same time.
• Sensor Cleaning: Wiping down aqua stats to ensure they are reading temperatures accurately.
• Checking Gaskets: Inspecting for minor leaks at the flange connections.

Troubleshooting Common Recirculation Issues

If you notice your water isn't as hot as it used to be, you might have an "air lock." This happens when air bubbles get trapped in the pump housing. Most pumps have a bleed screw to release this air. If you hear a humming noise but have no hot water, the pump's impeller might be stuck due to sediment. For residents dealing with these issues in Tankless Water Heater Installation South Clearbrook, BC, a quick professional service call can usually clear the lines and get the heat flowing again.

Frequently Asked Questions about Tankless Recirculation

Can I add a pump to an existing tankless heater?

Yes! Most tankless heaters can be retrofitted with a tankless circulator pump. If you don't have a return line, we use a "crossover valve" kit. This allows the system to work in a single-pipe configuration by using your cold water line to send water back to the heater.

Does a circulator pump void my warranty?

Not if you use manufacturer-approved kits and have them installed by a professional. In fact, many high-end tankless brands now offer their own integrated pumps specifically to ensure warranty compliance and peak performance.

How much energy does the pump use?

Modern pumps use very little electricity. Many are equipped with permanent-magnet motors and "AutoAdapt" technology that uses less power than a standard 40-watt light bulb. When combined with scheduled operation or on-demand buttons, the energy cost is negligible compared to the massive water savings you'll achieve.

Conclusion

At Rep-Air Heating And Cooling, we believe that home comfort shouldn't involve a two-minute wait every time you want to wash your hands. Serving the Lower Mainland with a customer-first approach, our expert technicians are here to help you find the perfect hot water solution. Whether you’re looking to save water, reduce your utility bills, or simply enjoy the luxury of instant hot water, a tankless circulator pump is a game-changer.

If you're ready to upgrade your home's plumbing system or need expert advice on the best recirculation options for your specific layout, we are here to help. More info about plumbing services is just a click away, and our team is always ready to treat your home like our own. Let's make waiting for hot water a thing of the past!
