Fixing Cramped Pipe Layouts from Previous Furnace Installations: A Case Study

The Hidden Danger of Repeated Furnace Lockouts

When exploring fixing cramped pipe layouts from previous furnace installations: a case study, homeowners quickly realize that a furnace shutting down repeatedly is rarely a flaw with the heating unit itself. Here in Mission BC, our technicians at Rep-Air Heating and Cooling frequently encounter this exact scenario. You reset the system, it fires up, and for a few hours, everything seems fine—until the next safety lockout leaves your house growing colder by the minute. Homeowners often blame the furnace control board or the thermostat when the system frequently shuts down, completely unaware that the exterior venting layout might be the actual culprit. When high-efficiency condensing furnaces with two-pipe PVC venting experience these repeated safety lockouts, you face a critical decision: keep resetting the unit and hoping for the best, or have a professional rebuild the PVC layout to code.

Relying on professional heating services to diagnose these clearance issues ensures the system operates safely. In our experience, the root cause usually traces back to the day the equipment was put in. Previous hurried installers sometimes cram exterior pipes together to save time on drilling through concrete, brick, or tough exterior siding. By running both the intake and the exhaust through the same oversized hole or placing them mere inches apart, they create a hidden mechanical flaw. This shortcut might save the installer an hour of labor, but we regularly see how it sets the homeowner up for years of frustrating, mysterious system failures.

Over time, these tight clearances force the system to suffocate on its own byproducts. High-efficiency condensing furnaces with two-pipe PVC venting are highly sensitive machines designed to operate within strict parameters. When those parameters are violated by poor exterior pipe routing, the internal safety mechanisms do exactly what they are designed to do: shut the entire system down to protect your home. Understanding why this happens requires looking at how these modern systems breathe.

Understanding the Two-Pipe Venting System

Modern high-efficiency heating systems utilize a dedicated fresh air intake and a separate exhaust pipe to manage the combustion process safely. Unlike older standard-efficiency models that drew air from inside your basement or utility closet, high-efficiency condensing furnaces with two-pipe PVC venting are completely sealed combustion systems. They pull 100% of their required oxygen from outdoors and push 100% of their waste gases back outdoors. This closed-loop system is what makes them so incredibly efficient, but it also makes them entirely dependent on proper exterior airflow.

The intake pipe draws in fresh, oxygen-rich air from outside to feed the burner flames. Meanwhile, the exhaust pipe safely vents harmful combustion byproducts—specifically carbon monoxide, carbon dioxide, and highly acidic moisture—away from the home. Because these two pipes serve opposite and easily conflicting purposes, manufacturer specifications dictate strict minimum distances between their terminations. These clearances exist to prevent cross-contamination. If the exhaust gas mixes with the fresh air supply, the system's efficiency and safety are immediately compromised.

In our years of servicing local homes, we've found that understanding this critical layout is absolutely crucial when preparing for a new furnace installation to ensure contractors do not take mechanical shortcuts. A properly installed two-pipe system will usually feature an exhaust pipe that sits higher than the intake and points away from it, utilizing specific directional fittings to force the waste gases out into the open air where they can safely dissipate.

• Standard Efficiency (80% AFUE) — Air Source: Indoor ambient air (basement/closet) — Venting Material: Metal flue pipe (B-vent) — Clearance Sensitivity: Low (vertical draft through roof)

• High-Efficiency (90%+ AFUE) — Air Source: Outdoor air via dedicated PVC intake — Venting Material: Two-pipe PVC (Schedule 40) — Clearance Sensitivity: Extremely High (requires strict separation)

When you look at the exterior of your home, the two white PVC pipes sticking out of the wall might look like a simple plumbing detail, but they are the literal lungs of your heating system. If they are installed incorrectly, the furnace cannot breathe, leading directly to the mechanical failures associated with exhaust recirculation.

The Mechanics of Exhaust Recirculation

The Problem: Your high-efficiency furnace fires up, runs for ten to fifteen minutes, and then abruptly shuts down before the house reaches the target temperature. You might notice a blinking diagnostic light on the lower panel of the unit indicating a pressure switch error or an ignition failure. This cycle repeats endlessly, leaving your home uncomfortable and putting immense wear and tear on the internal components.

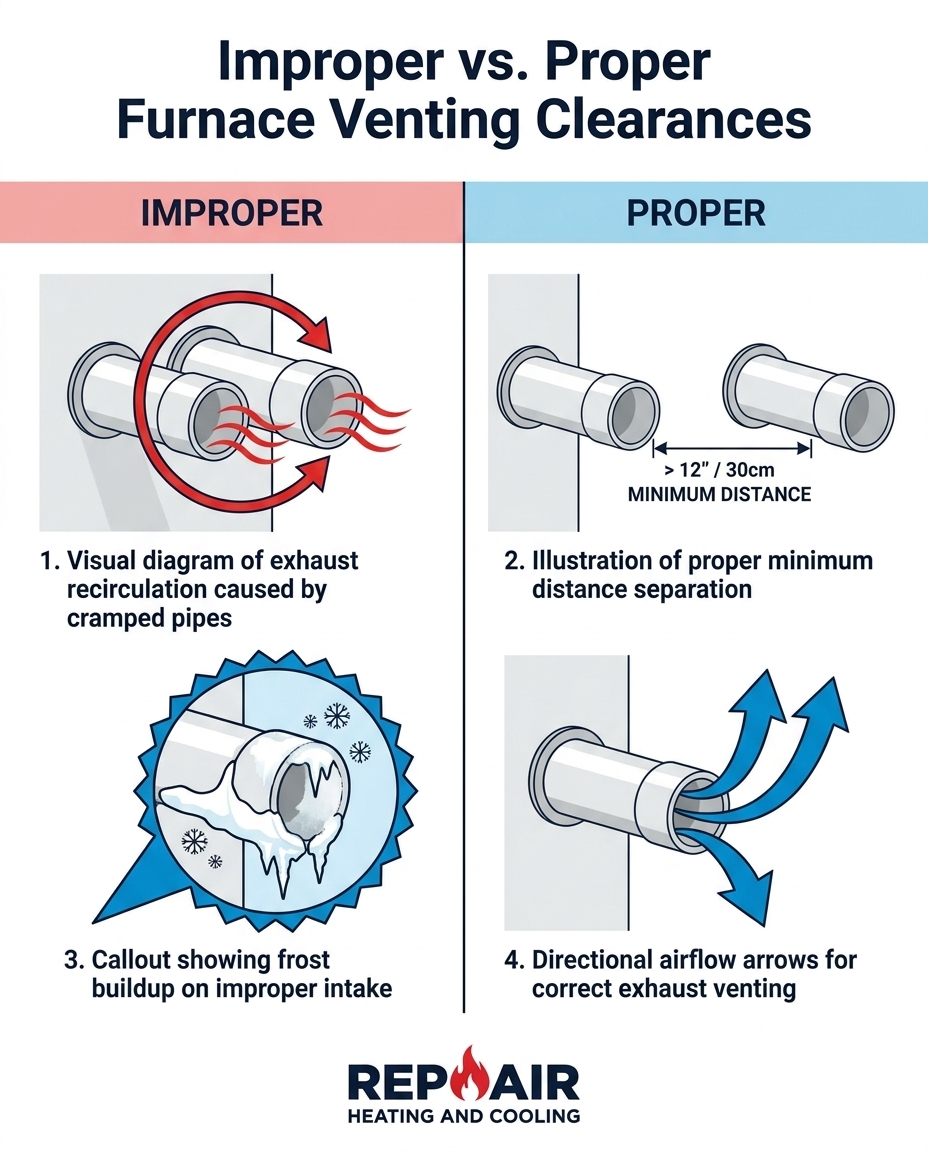

The Cause: A pattern we see often is that when intake and exhaust pipes are installed too closely together by previous hurried installers, the system can actually suck its own exhaust back into the fresh air intake. This phenomenon is known as exhaust recirculation. Instead of pulling in clean, oxygen-rich winter air, the intake pipe inhales the carbon monoxide and heavy moisture that just exited the exhaust pipe. Because fire requires oxygen to burn, this recirculation rapidly depletes the necessary oxygen inside the sealed combustion chamber. The burner flames become unstable, flutter, and burn inefficiently, creating even more soot and carbon monoxide in a dangerous feedback loop.

The Solution: Correcting this dangerous cycle requires expert HVAC installation techniques to re-route the exterior piping to proper, code-compliant distances. A professional technician must evaluate the current layout, calculate the required clearances based on the specific manufacturer's manual, and physically separate the terminations to ensure the intake only draws in fresh air.

Why Safety Switches Trigger

Modern furnaces are equipped with a series of highly sensitive safety mechanisms designed to prevent catastrophic failures. When exhaust recirculation occurs, these sensors are the first line of defense.

• Pressure switches: These sensors detect improper draft or insufficient oxygen levels inside the combustion chamber. If the intake is pulling in heavy, wet exhaust instead of crisp air, the pressure changes, and the switch trips.

• Flame roll-out sensors: If oxygen starvation causes the burner flames to flutter or seek oxygen outside the heat exchanger, these sensors detect the misplaced heat and cut the power.

• System lockouts: The furnace shuts down entirely to prevent carbon monoxide buildup in the home. Frequent resetting without addressing the exterior venting damages the system over time, potentially burning out the inducer motor or the control board.

How Freezing Condensation Exacerbates Venting Flaws

The mechanical flaws of cramped pipe layouts become exponentially worse when the weather turns harsh. Exhaust gases leaving high-efficiency condensing furnaces with two-pipe PVC venting are not just toxic; they carry high amounts of moisture. The combustion process naturally creates water vapor, which is why these systems require internal condensate drains. However, a significant amount of this water vapor still exits through the exterior exhaust pipe in the form of a warm, wet plume of steam.

When this moist exhaust is drawn into a cramped intake pipe during sub-zero temperatures, it rapidly freezes. This is a massive issue during the peak winter heating season in Mission BC. The specific combination of cold temperatures and high winter dampness in our region drastically accelerates condensation freezing on poorly spaced PVC vents. The warm moisture hits the freezing cold plastic of the intake pipe and instantly turns to frost.

As the furnace continues to run, layer upon layer of frost builds up inside the intake pipe. Eventually, this frost buildup completely chokes off the air supply. It acts like a cork in a bottle, leading to sudden and complete system shutdowns right when heating is needed most. Our team routinely responds to emergency no-heat calls on freezing January mornings, only to find the intake pipe completely encased in a solid block of white ice.

Proper spacing prevents this moisture from bridging the gap between the two pipes. When the exhaust is vented far enough away, or directed outward with the correct velocity, the steam dissipates harmlessly into the winter air rather than being sucked back into the system. Proper clearance ensures that the intake pipe remains dry and clear, allowing the furnace to draw the oxygen it needs to keep your home warm during the coldest nights of the year.

Visual Signs of Hurried Installation Shortcuts

You do not need to be a licensed gas fitter to spot the warning signs of a poorly executed venting layout. Homeowners can visually inspect their exterior walls to see if the two PVC pipes are installed in a way that promotes exhaust recirculation. Identifying these issues early can save you from a sudden breakdown in the middle of winter.

Here are the primary visual cues our technicians recommend looking for that indicate your exterior pipes were cramped together by a hurried installer:

• Pipes sharing a wall cavity: Look to see if the intake and exhaust pipes are nearly touching or exiting through the exact same small hole in the siding without any specialized directional fittings separating them.

• Excessive frost buildup: Check the pipes during cold weather. If you see thick frost or ice forming exclusively around the opening of the intake pipe, it is actively inhaling wet exhaust.

• Improper directional pointing: Notice if the exhaust pipe points directly toward the intake opening. The exhaust should always be angled away, elevated, or directed outward to ensure the waste gases cannot easily drift back into the air supply.

• Soot or discoloration: Look for dark streaks or yellowing on the exterior siding around the pipes, which can indicate that acidic exhaust gases are swirling against the house instead of venting away cleanly.

• Foul odors near the unit: Sometimes, if the intake is pulling in exhaust, you may notice a faint, unusual smell near the furnace itself as the combustion process struggles to burn cleanly.

These visual cues indicate a strong need for professional evaluation. Often, we catch these clearance issues early during a routine HVAC maintenance plan, allowing our technicians to correct the layout before it causes a major system failure or damages internal components.

Rebuilding Venting Layouts to Code

Correcting cramped pipes is not a matter of simply gluing on a PVC extension and hoping for the best. It requires a thorough understanding of fluid dynamics, combustion air requirements, and local safety codes. When high-efficiency condensing furnaces with two-pipe PVC venting are choking on their own exhaust, the correction process must be handled objectively and professionally.

At Rep-Air Heating and Cooling, we contrast the original hurried installer shortcuts with a meticulous, code-compliant correction process. Our approach emphasizes safety, thoroughness, and long-term reliability over quick fixes. Here is how our professional technicians properly rebuild a flawed venting layout:

1. Calculating proper draft and clearance: Technicians first consult the manufacturer's specific installation manual to determine the exact minimum separation distance required. They also calculate the total "equivalent length" of the pipe run to ensure adding new fittings will not exceed the furnace's venting capacity.

2. Coring new penetrations: Professionals may need to core new, properly spaced holes in the exterior wall to achieve the manufacturer-mandated separation distance. This ensures the intake and exhaust are physically far enough apart to prevent cross-contamination.

3. Installing directional fittings: Specialized fittings, such as snorkels or concentric vent kits, are precisely measured and installed. A concentric vent allows both pipes to exit through a single hole but uses an engineered design to push exhaust far out from the center while pulling fresh air from behind, completely eliminating recirculation.

4. Sealing the building envelope: Once the new pipes are routed, the exterior penetrations are meticulously sealed against the weather. Properly sealed and spaced venting also protects the home's overall atmosphere, complementing indoor air quality solutions by ensuring that no carbon monoxide or exhaust fumes can seep back into the living space through the walls.

By having professionals address the root mechanical cause rather than just resetting the system, you permanently eliminate the hidden danger of exhaust recirculation. A rebuilt, code-compliant venting layout ensures that your furnace can finally breathe deeply, operate efficiently, and keep your home safe all winter long.

Frequently Asked Questions

Why does my high efficiency furnace keep locking out?
Your high-efficiency furnace likely keeps locking out because it is starved for oxygen or experiencing improper draft. When intake and exhaust pipes are installed too closely together, the system pulls its own exhaust back into the combustion chamber. This triggers internal safety sensors, like the pressure switch, which shut the furnace down to prevent carbon monoxide hazards.

How far apart should furnace vent pipes be?
The exact distance furnace vent pipes should be apart depends entirely on the manufacturer's specifications and local gas codes. Generally, most high-efficiency systems require a minimum separation of 12 to 36 inches between the intake and exhaust terminations. Proper spacing ensures that wind and air currents do not push waste gases back into the fresh air supply.

Why is my furnace intake pipe freezing over?
Your furnace intake pipe is freezing over because it is inhaling warm, moisture-rich exhaust gases from a nearby exhaust pipe. When this wet vapor hits the cold plastic of the intake during freezing weather, it instantly turns to frost. Over time, this frost builds up and completely blocks the pipe, suffocating the furnace and causing an immediate shutdown.

Can furnace exhaust and intake be on the same wall?
Yes, furnace exhaust and intake pipes can be on the same wall, provided they meet strict clearance requirements. They must be separated by the manufacturer-specified distance, or utilize an engineered concentric vent kit that safely directs exhaust away from the intake point. Proper directional fittings are required to prevent the gases from mixing against the siding.

What are the signs of furnace exhaust recirculation?
The most common signs of furnace exhaust recirculation include frequent system lockouts, pressure switch error codes, and heavy frost buildup on the intake pipe during winter. You might also notice the burner flames flickering or burning yellow instead of a steady blue. Visually, if the two exterior PVC pipes are nearly touching, recirculation is highly likely.

Does my furnace venting layout meet current safety codes?
To determine if your furnace venting layout meets current safety codes, a professional technician must measure the clearances and compare them to the manufacturer's installation manual. Codes dictate minimum distances from windows, doors, gas meters, and between the pipes themselves. If your pipes were cramped together by a hurried installer, they likely violate these critical safety standards.

If your heating system is constantly shutting down and you suspect your exterior pipes are to blame, do not wait for a complete failure. A meticulous, code-compliant correction will restore your system's reliability and protect your home. Reach out to a professional to evaluate your venting layout and ensure your furnace has the clean air it needs to operate safely.
