Step-by-Step Guide to HVAC Load Calculations

Why Understanding How HVAC Load Calculations Work Saves You Money and Comfort

How HVAC load calculations work is one of the most important things to understand before replacing or installing any heating or cooling system in your home. Get it right, and your system runs efficiently, keeps your home comfortable year-round, and lasts for years. Get it wrong, and you could end up with a unit that's too big, too small, or simply wrong for your home — leading to higher energy bills, poor humidity control, and premature wear on your equipment.

Here is a quick overview of how HVAC load calculations work:

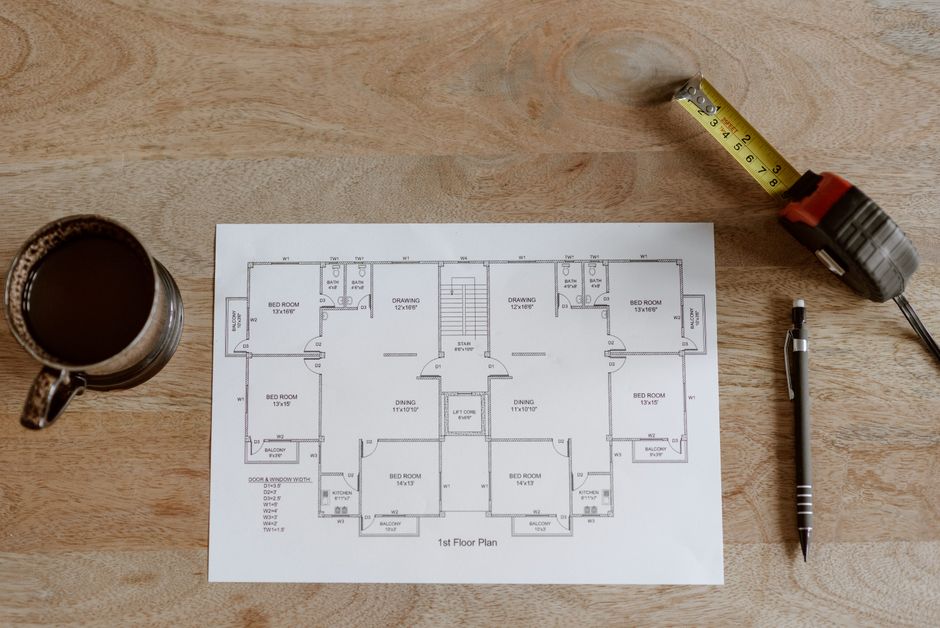

1. Measure the space - Record square footage, ceiling height, and room layout of all conditioned areas.
2. Assess the building envelope - Evaluate insulation levels, window count, door type, and airtightness.
3. Account for heat sources - Include occupants, lighting, appliances, and solar gain through windows.
4. Factor in your climate - Use local outdoor design temperatures and humidity data for your region.
5. Separate sensible and latent loads - Sensible load is temperature-based; latent load accounts for moisture removal.
6. Apply the Manual J method - Use ACCA's standard formula to calculate total BTUs per hour required.
7. Convert to equipment size - Divide total BTUs by 12,000 to find the tonnage your system needs.

For homeowners across the Lower Mainland — from Surrey, BC to Mission, BC — getting this calculation done properly by a qualified HVAC professional is the difference between a comfortable, efficient home and one that never quite feels right.

What is an HVAC Load Calculation and Why Does It Matter?

An HVAC load calculation is a scientific evaluation used to determine exactly how much heating and cooling capacity a home needs. This is measured in British Thermal Units (BTUs), where one BTU represents the amount of energy needed to raise or lower the temperature of one pound of water by one degree Fahrenheit.

Historically, many builders and contractors used rough estimates based solely on square footage to choose heating and cooling equipment. However, two houses of identical size can have vastly different heating and cooling requirements. For instance, a modern, highly insulated home in Abbotsford, BC with energy-efficient windows will require significantly less heating and cooling capacity than an older, draftier home of the same size in Chilliwack, BC.

By accurately determining the required system capacity, we can ensure optimal energy efficiency and precise indoor climate control. This prevents you from paying for an oversized system that wastes energy, while also ensuring your home remains perfectly comfortable during our damp winters and increasingly warm summers. Understanding The Importance of Properly Sized HVAC Mission BC helps clarify why this step is so vital before any new equipment is installed.

How HVAC Load Calculations Work to Prevent Short-Cycling

One of the most common consequences of skipping a load calculation is installing an oversized system. When a heating or cooling system is too large for the space it serves, it experiences a phenomenon known as "short-cycling."

Short-cycling occurs when a powerful system turns on, rapidly heats or cools the indoor air to the thermostat's setpoint, and then shuts off after only a few minutes. While this might sound convenient, it creates several major problems:

• Poor Humidity Control: Cooling a home involves two components: reducing the air temperature (sensible heat) and removing moisture from the air (latent heat). Because an oversized system shuts off so quickly, it does not run long enough to pull excess moisture out of the air. This leaves your home feeling damp and clammy, even if the thermostat says it is 72°F.
• Increased Equipment Wear and Tear: The most stressful part of an HVAC system's operation is the startup cycle. When a system turns on and off constantly throughout the day, it accelerates wear on vital components like the compressor and blower motor, leading to premature breakdowns.
• Higher Utility Bills: HVAC systems consume the most electricity when they first start up. Constant short-cycling prevents the system from reaching its optimal operating efficiency, causing your monthly energy bills to spike.

Performing a precise load calculation helps you choose a system that runs in longer, more efficient cycles, ensuring steady temperatures and excellent humidity control. If your current unit is constantly turning on and off, it might be an indicator that you need to consult a professional to Know When It's Time for AC Installation with a properly sized unit.

The Core Science: How HVAC Load Calculations Work

To understand how professional load calculations work, we must look at the thermodynamic principles of heat transfer. Heat naturally moves from warmer areas to cooler areas. In the winter, heat escapes from your warm living room to the cold outdoors. In the summer, outdoor heat forces its way into your cool, air-conditioned home.

HVAC professionals use advanced methodologies like the Heat Balance (HB) method or the Radiant Time Series (RTS) method to track these heat flows. These methods analyze the three primary ways heat moves through your home:

1. Conduction: The transfer of heat through solid materials, such as walls, ceilings, floors, and windows.
2. Convection: The transfer of heat via moving air, which includes outdoor air leaking into the home (infiltration) or ventilation air brought in intentionally.
3. Radiation: The transfer of heat through electromagnetic waves, primarily solar energy passing through windows and warming up your floors and furniture.

By understanding these heat transfer pathways, we can calculate the exact rate at which heat enters or leaves your home. This scientific approach is what allows us to define the precise mechanical specifications for your home's comfort system. For a deeper look at this process, read about How Load Calculations Determine Your AC Installation Specs.

Understanding Sensible vs. Latent Cooling Loads

When calculating cooling loads, we must separate the total load into two distinct categories:

• Sensible Cooling Load: The heat that causes a change in the dry-bulb temperature of the air. This is the heat you can feel and measure directly with a standard thermometer. It comes from conduction through walls, solar radiation through windows, and heat emitted by lights and appliances.
• Latent Cooling Load: The heat associated with the moisture content of the air. Removing this moisture does not change the dry-bulb temperature, but it is essential for comfort. Latent heat sources include outdoor humidity leaking indoors, household activities like cooking and showering, and the natural respiration of the home's occupants.

During our Lower Mainland summers, the comfort range for most people lies between 70 to 76°F dry-bulb temperature and 45% to 65% relative humidity. If your HVAC system is sized using a calculation that ignores the latent load, it will fail to maintain this relative humidity range, leaving your home feeling stuffy and encouraging mold growth.

How HVAC Load Calculations Work with Building Envelope Properties

Your home's "building envelope" is the physical barrier between the conditioned indoor environment and the outdoor elements. The properties of this envelope dictate how easily heat transfers into and out of your house.

• Insulation R-Values: The R-value measures a material's resistance to conductive heat flow. Higher R-values mean better insulation. We must look at the insulation in your attic, exterior walls, and crawlspaces to understand how well your home holds onto its conditioned air.
• U-Factor: While R-value measures heat resistance, the U-factor measures the rate of heat transfer. It is primarily used to rate windows and glass doors. A lower U-factor means the window is better at preventing heat loss or gain.
• Airtightness: No home is perfectly sealed. Outdoor air leaks in through gaps around doors, windows, electrical outlets, and sill plates. To quantify this infiltration, we often recommend a blower door test, which depressurizes the home to measure exactly how much air escapes and enters.

By entering these precise envelope values into our calculations, we avoid the massive errors that come from using generic, pre-determined assumptions. This detailed planning is a core part of a successful, professional AC Installation Process Explained Step by Step.

Manual J Methodology: Block Load vs. Room-by-Room

The gold standard for residential load calculations is the ACCA Manual J protocol, developed by the Air Conditioning Contractors of America. When performing a Manual J calculation, there are two primary approaches: a whole-house block load and a room-by-room load calculation.

• Whole-House Block Load: This method treats the entire home as a single, large zone. It calculates the total heat loss and heat gain for the building as a whole. A block load is highly effective for determining the overall size of a central heating or cooling unit (such as a heat pump or furnace).
• Room-by-Room Load Calculation: This detailed approach calculates the individual heating and cooling requirements for every single room in the house. It considers the unique window orientations, wall exposures, and usage patterns of each space.

While a block load is sufficient for sizing the outdoor unit, a room-by-room calculation is absolutely necessary for proper duct design and air balancing. Without a room-by-room analysis, you may end up with a system that is technically the right overall capacity, but leaves your south-facing upstairs bedroom sweltering while your basement remains freezing.

If you are trying to decide between centralized ducted comfort or targeted zoning, comparing Ductless vs Ducted Options for First Time AC Installation can help you determine which system style fits your home's layout best.

Key Variables and Formulas in the Manual J Process

Performing a Manual J calculation requires collecting a wide array of physical and environmental variables. These include:

• Square Footage and Volume: The total floor area and ceiling heights of all conditioned rooms.
• Air Changes per Hour (ACH): A metric indicating how many times the total volume of air inside the home is replaced by outdoor air every hour through natural infiltration.
• Occupant Heat Gain: People generate heat. A sedentary person releases approximately 360 BTUs of heat per hour (split between sensible and latent heat).
• Internal Gains: Heat generated by indoor lighting, major appliances (refrigerator, stove, dryer), and electronics.

To illustrate how these variables interact, here is a comparison of how block loads and room-by-room calculations utilize this data:

External and Internal Heat Gain Factors in British Columbia

When designing comfort systems for homes in the Lower Mainland — whether in coastal Delta, BC or further inland in Mission, BC — we must account for our specific local climate.

External Climate Factors

Unlike the extreme dry heat of the interior or the severe cold of the prairies, our coastal climate features mild, damp winters and moderately warm, humid summers. When performing load calculations, we do not design systems for the absolute worst weather in history. Instead, we use statistical outdoor design conditions. For example, we look at the temperatures that are exceeded only 1% of the time during summer, ensuring your system remains efficient on typical days while still having the capacity to keep you cool during a summer heatwave.

Solar Exposure and Building Orientation

The direction your home faces has a massive impact on your cooling needs. A home in Maple Ridge, BC with large, unshaded, south- or west-facing windows will experience intense solar heat gain in the afternoon. Conversely, a home shaded by mature trees or nestled against a north-facing hillside will have a much lower cooling load.

Internal Heat Sources and Ventilation

We must also factor in internal heat gains from daily activities. Modern building codes require proper fresh air ventilation to maintain indoor air quality. The standard recommendation is to provide 20 CFM (Cubic Feet per Minute) of outdoor air per person. Bringing in this fresh air is fantastic for your health, but because that outdoor air must be heated in the winter and cooled/dehumidified in the summer, it adds to the overall load that your HVAC system must handle.

How HVAC Load Calculations Work for Radiant vs. Convective Systems

How we calculate loads also depends heavily on the type of heating and cooling system installed in your home.

• Convective Air Systems: These are traditional ducted systems (like central furnaces and air conditioners) that heat or cool the air directly and circulate it throughout the home. Because air has a low thermal capacity, these systems must react quickly to changes in temperature, requiring immediate airflow adjustments.
• Radiant Systems: These systems heat or cool surfaces (such as in-floor hydronic tubing or ceiling panels). Radiant heat transfer works directly on objects and people rather than warming the air first.

Because radiant systems interact with the building's thermal mass, they benefit from a "time delay effect." The concrete or wood of your floors absorbs and stores thermal energy, releasing it slowly over several hours. This dampens peak heating and cooling loads, allowing for a smaller, more steadily running system.

If you are considering upgrading your home's heating and cooling system to a highly efficient heat pump, our Best Heat Pump Installation Guide Downtown Mission BC provides excellent localized guidance on choosing the right system for our climate.

Frequently Asked Questions About HVAC Sizing

What are the standard rules of thumb for HVAC sizing and why are they limited?

For decades, a common rule of thumb in the HVAC industry was to allocate 1 ton of cooling capacity (12,000 BTUs) for every 500 to 600 square feet of living space, assuming a standard airflow rate of 400 CFM per ton.

While these rules of thumb are simple, they are incredibly limited and often lead to massive sizing errors. They completely ignore critical factors such as:

• The quality and thickness of your home's insulation.
• The age, style, and orientation of your windows.
• The local climate zone and average daily humidity.
• The airtightness of the building envelope.

Relying on these outdated estimates usually results in heavily oversized systems that short-cycle, drive up utility bills, and fail to manage indoor humidity. When planning a budget for home comfort upgrades, it is vital to base your decisions on real data. You can learn more about managing these initial steps in our guide on How to Budget for Your First AC Installation.

How do you convert calculated BTU loads into equipment tons?

Once a professional has calculated your home's total heating and cooling loads in BTUs, that number must be converted into "refrigeration tons" to select the right equipment.

One ton of air conditioning is equivalent to 12,000 BTUs per hour. This terminology dates back to the days of ice-harvesting, where one "ton" represented the amount of cooling power required to melt one ton (2,000 pounds) of ice over a 24-hour period.

To see how this works in a real-world scenario, let's look at an example:

• Imagine a 2,000-square-foot house with 10-foot ceilings, 6 occupants, 12 windows, and 3 exterior doors.
• A detailed Manual J calculation determines that this home has a peak cooling load of 35,600 BTUs per hour.
• To find the required tonnage, we divide the BTUs by 12,000:$$\text{35,600 BTUs} \div \text{12,000 BTUs per ton} = \text{2.97 tons}$$
• Based on this calculation, a professional would recommend a 3-ton HVAC unit to perfectly match the home's needs.

Sizing your system this precisely ensures peak efficiency. If you are adding cooling to a home for the very first time, check out our guide on How to Add AC to a Home That Never Had It.

What happens if my HVAC system is incorrectly sized?

Installing an incorrectly sized HVAC system — whether it is too large or too small — leads to a host of comfort and financial issues.

• Consequences of an Oversized System: As discussed, oversized systems turn on and off rapidly. This short-cycling prevents proper dehumidification, leading to high indoor humidity, clammy air, and an increased risk of mold growth. It also causes uneven temperatures across different rooms and leads to higher energy bills and frequent equipment breakdowns.
• Consequences of an Undersized System: An undersized system simply cannot keep up with extreme weather. On a hot summer afternoon in Abbotsford or a freezing winter night in Mission, an undersized unit will run constantly without ever reaching your desired thermostat temperature. This constant operation leads to high energy bills, excessive wear on the system, and a home that remains uncomfortable when you need climate control the most.

To avoid these issues, it is essential to explore all your system design and layout options. If your home does not have traditional ductwork, you can read about AC Installation Options for Homes Without Existing Ductwork to find a solution that fits your specific load requirements.

Conclusion

At Rep-Air Heating And Cooling, we know that your home is your sanctuary. Getting your HVAC load calculation right is the single most important step in ensuring your family enjoys perfect comfort, low energy bills, and a reliable system for years to come.

Serving homeowners across the Lower Mainland, BC, our team of highly trained professionals treats every customer like family. We pride ourselves on delivering unmatched customer service and comprehensive maintenance plans designed to keep your systems running flawlessly.

Don't guess when it comes to your home's comfort and efficiency. Let us perform a precise, professional load calculation tailored specifically to your home's unique layout and our local climate. Schedule your professional load calculation with our team today!
